Technical Data
| Temperature Rated: | 60°C | Expansion Ratio: | 1:4 |
| Nominal Voltage: | 30V | Length of Spiral Section: | 300mm |
| Test Voltage: | 2000V | Straight Ends: | 250mm / 250mm |

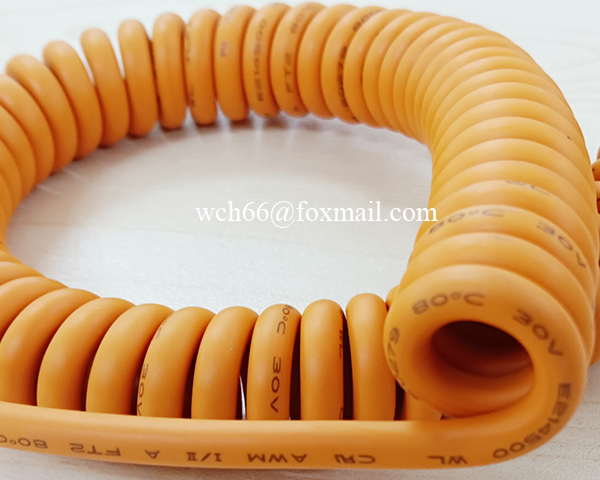

Cable Structure
- Pure copper wire strands, finely tinned or bare only as per DIN VDE 0295 Class 6 / IEC 60228 Class 6
- Cores insulation material: Thermoplastic TPU
- Cores optional color: white, black, red, blue, grey, yellow, green, brown, orange, transparent, yellow-green, etc.
- Cores are to be stranded or twisted together.
- Copper strands screening shield, optional.
- Outer jacket material: Thermoplastic TPU
- Sheath color: Yellow.
- Jacket surface marking optional: UL20512.
Application
- Telecommunications & Electronics
- Industrial & Machinery
- Medical Equipment
- Automotive & Transportation
- Military & Defense
- Consumer & Household Appliances
- Test & Measurement Equipment
Advantage
- Flexibility & Durability – Withstand repeated stretching and bending.
- Tangle-Free – Prevents knots and snags.
- Space-Saving – Retracts neatly when not in use.
- Protection Against Abrasion – Particular materials for harsh environments.
Specification
- 28AWG X 6C: Overall Diameter 5.70mm, Spiral Length = 300mm, Coiled Diameter = 22.00mm;
- 28AWG X 5C: Overall Diameter 5.40mm, Spiral Length = 300mm, Coiled Diameter = 21.00mm;
- 26AWG X 5C: Overall Diameter 5.70mm, Spiral Length = 300mm, Coiled Diameter = 22.00mm;
- 26AWG X 4C: Overall Diameter 5.40mm, Spiral Length = 300mm, Coiled Diameter = 21.00mm;
